Lumify app

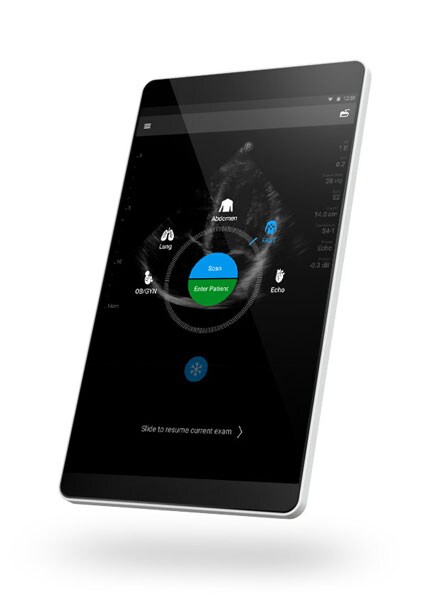

One touch to start an ultrasound exam

Enter your patient's information or go straight to scanning with one touch—getting started on the Lumify app is easy and quick.

The Lumify app is available for compatible Android smart devices via the Google Play Store.

Apple does not support Lumify at this time, but we are always exploring opportunities to expand support for all platforms.

Imaging simplified

It's hard to believe the Lumify image quality is as good as it is. We've painstakingly optimized the image for each exam type so you don't have to, giving you all the advantages and flexibility of having ultrasound on your compatible Android mobile device without forcing you to compromise on image quality.

OB Calcs

Lumify now allows you to quickly and intuitively calculate estimated gestational age and fetal weight with a simple 4-measurement technique based on Hadlock (1985) growth table.

Image adjustments

Adjust and interact with the image with gestures you already use on your mobile device: pinch or double tap to zoom, scroll up or down for gain, depth, and volume.

M Mode

In M-mode, you can learn about the movement of an area of anatomy and also calculate fetal heart rate. In M-mode, the tissue interface position or depth is displayed along the vertical axis, and time is displayed along the horizontal axis.

Freeze

Freezing the image introduces new tools like the cine loop slider and the ability to save and share ultrasound images and loops.

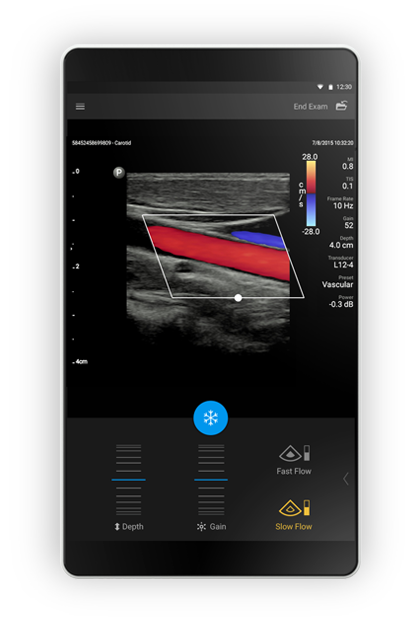

Fast flow

The fast flow setting eliminates the need to manually adjust the scale while using color flow imaging: Fast Flow is optimized for faster blood flow conditions within each exam type (e.g. arterial flow).

Save loop

Capture and save the best loop for your patient records.

Slow flow

The slow flow setting eliminates the need to manually adjust the scale while using color flow imaging: Slow flow is optimized for slower blood flow conditions within each exam type (e.g. venous flow).

Annotations

Use Android's advanced keyboard technology and voice recognition capabilities to quickly and easily annotate your images.

Measure

Intuitively and accurately measure multiple 2D distances, circumferences, and areas with simple touch calipers.

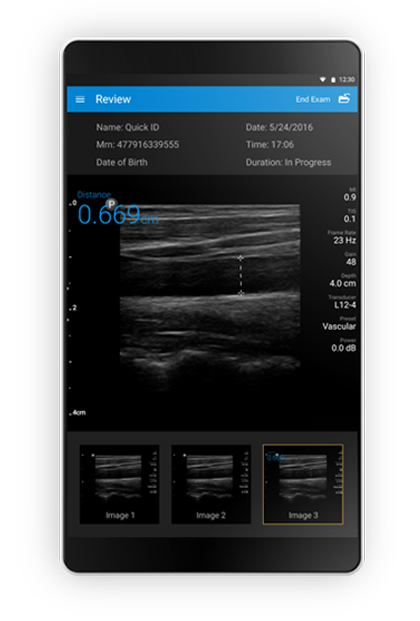

Review and share

Compatible with the latest encryption and data security systems, Lumify lets you keep a record of patient studies for review and provides HIPAA compliant options for sharing those studies from your portable ultrasound device.

Review your patient's images and send.

Connect easily to patient PACS, or share images, video, and notes with colleagues from your handheld ultrasound device via email or a shared network.

Robust DICOM and workflow capabilities

Lumify supports a wide variety of DICOM and workflow functionalities to satisfy the needs of large and small organizations around the world:

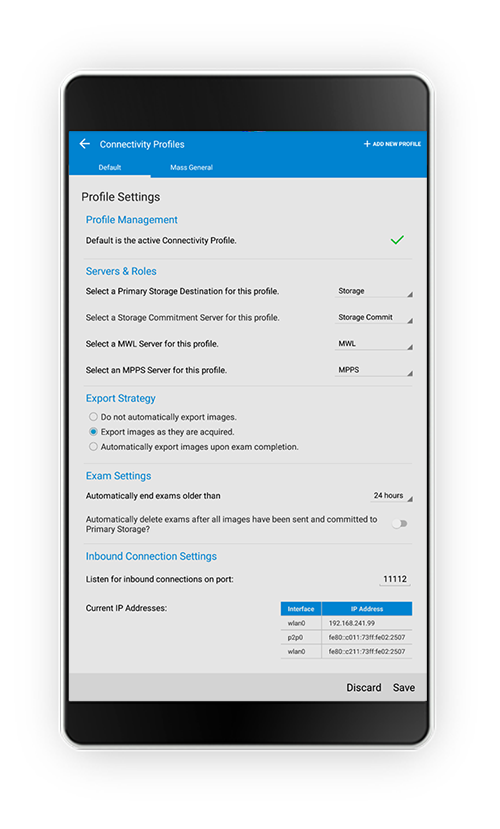

Connectivity Profiles allow users to easily switch between multiple environments
DICOM image store
DICOM Modality Performed Procedure Step (MPPS)
DICOM Storage Commitment support
DICOM modality worklist (query retrieve)
Option to configure patient data in the DICOM header and images (not DICOM tags), as well as anonymize

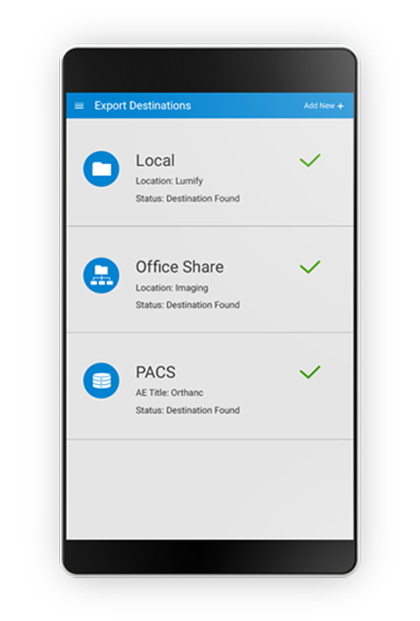

Export to DICOM PACS, network share drive, USB storage, removable SD Card storage, direct connection to PC.
Ability to export in PC format (MP4 clips, PNG images)
Send images to an export destination as acquired
Automatically delete an exam after export
Email patient exams
VISTA compatible
IPv6 compatible
Configurable delay before automatically ending an exam

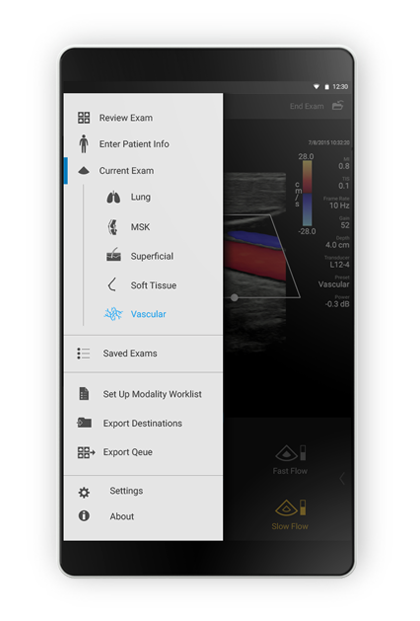

Quick access

Knowing time savings is critical in any healthcare environment, we've built in several workflow-improving features such as an always ready menu, barcode reader, modality worklist, and more.

Modality worklist

DICOM modality worklist enables Lumify to query for patient demographics and ultrasound study details from the MWL SCP.

This allows those using DICOM modality worklists to have a more automated pathway for filling out patient data on the Lumify ultrasound machine.

Barcode reader

The built-in barcode reader uses your Android device's camera and can be configured to read most patient barcodes, making inputting patient information quick and accurate.
